Classification with NNs - coding guidelines

This notebook contains a small portion of the material of the original BasicPytorch notebook, namely the part dealing with classification by means of Feed-forward NNs. It is intended to provided a guideline on how to organize functions and classes used for network creation, training, and evaluation into *py files instead of embedding them directly in the notebook (this is a discouraged behaviour!)

%matplotlib inline

import random
import numpy as np
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
import scooby

from mpl_toolkits.mplot3d import Axes3D
from sklearn.datasets import make_moons
from sklearn.metrics import accuracy_score
from torch.utils.data import TensorDataset, DataLoader
from torchsummary import summary

from dataset import make_train_test
from model import SingleHiddenLayerNetwork
from train import train, evaluate, classification
from utils import set_seed

set_seed(42)
device = 'cpu'

Create input dataset

train_size = 1000 # Size of training data
test_size = 200 # Size of test data

X_train, y_train, X_test, y_test, train_loader, test_loader = make_train_test(train_size, test_size, noise=0.2)

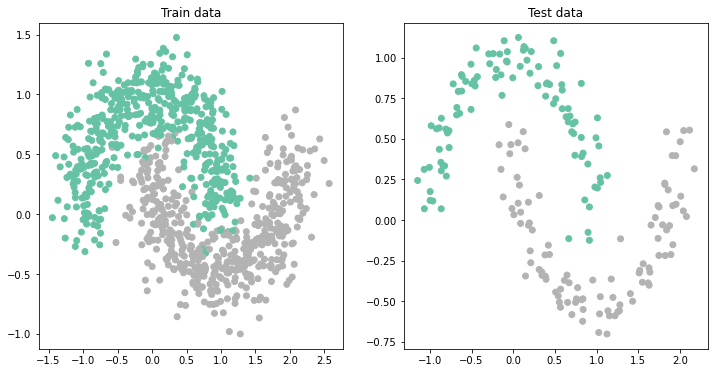

fig, ax = plt.subplots(1, 2, figsize=(12, 6))
ax[0].scatter(X_train[:, 0], X_train[:, 1], c=y_train, cmap='Set2')
ax[0].set_title('Train data')
ax[1].scatter(X_test[:, 0], X_test[:, 1], c=y_test, cmap='Set2');
ax[1].set_title('Test data');

Train

network = SingleHiddenLayerNetwork(2, 8, 1)
network.to(device)

epochs = 1000
classification(network, train_loader, test_loader, epochs, device=device)

Epoch 0, Training Loss 0.72, Training Accuracy 0.47, Test Loss 0.61, Test Accuracy 0.85
Epoch 100, Training Loss 0.26, Training Accuracy 0.88, Test Loss 0.24, Test Accuracy 0.90
Epoch 200, Training Loss 0.18, Training Accuracy 0.93, Test Loss 0.14, Test Accuracy 0.94
Epoch 300, Training Loss 0.14, Training Accuracy 0.95, Test Loss 0.10, Test Accuracy 0.97
Epoch 400, Training Loss 0.11, Training Accuracy 0.96, Test Loss 0.07, Test Accuracy 0.98
Epoch 500, Training Loss 0.10, Training Accuracy 0.97, Test Loss 0.06, Test Accuracy 0.98
Epoch 600, Training Loss 0.09, Training Accuracy 0.97, Test Loss 0.05, Test Accuracy 0.98
Epoch 700, Training Loss 0.08, Training Accuracy 0.97, Test Loss 0.04, Test Accuracy 0.98
Epoch 800, Training Loss 0.08, Training Accuracy 0.97, Test Loss 0.04, Test Accuracy 0.98
Epoch 900, Training Loss 0.08, Training Accuracy 0.97, Test Loss 0.04, Test Accuracy 0.98

Evaluate

network.eval()
with torch.no_grad():
    X_train, X_test = X_train.to(device), X_test.to(device)
    a_train = network(X_train)
    a_test = network(X_test)
print("Test set accuracy: ", accuracy_score(y_test, np.where(a_test[:, 0].cpu().numpy()>0.5, 1, 0)))

fig, ax = plt.subplots(1, 2, figsize=(12, 6))
ax[0].scatter(X_train[:, 0].cpu(), X_train[:, 1].cpu(), c=np.where(a_train[:, 0].cpu().numpy()>0.5, 1, 0), cmap='Set2')
ax[0].set_title('Train data')
ax[1].scatter(X_test[:, 0].cpu(), X_test[:, 1].cpu(), c=np.where(a_test[:, 0].cpu().numpy()>0.5, 1, 0), cmap='Set2')
ax[1].set_title('Test data');

Test set accuracy:  0.985

scooby.Report(core='torch')
